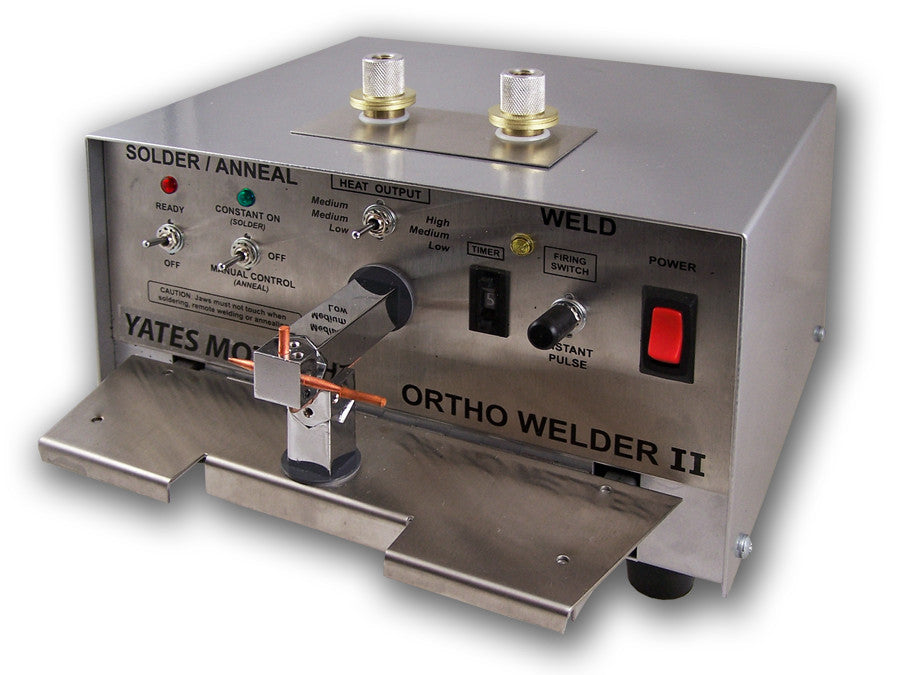

Ortho Welder II


The Ortho Welder II is often referred to as the "All In One Workhorse" of the dental lab because it is three machines in one:

  • Orthodontics Welding Machine
  • Electric Solderer
  • Wire Annealer

Full-featured, heavy-duty, one-time purchase dental welding machine. The Ortho Welder is compact, functional, versatile, easy-to-use, & maintenance-free.

Ortho Welder II is the ideal solution for orthodontics laboratories & offices, commercial dental labs, and any lab demanding instant results. Invaluable and economical – saves time, labor, & space while being a tremendous profit generator.

Use as an orthodontics welding machine:

Use as a welder for wire, brackets or bands, as a stress reliever for wire or an electric soldering machine for partials and C&B. This versatile machine does it all, from low-heat soldering to high heat welding. It's the most economical full-feature quality orthodontic welder on the market.

Increased Power: 200% more welding power from a larger transformer makes for quicker and cleaner welds, improved remote welding capabilities, and a wider range of output options.

NEW Half-inch platform cutout accommodates larger models, closer to the welding jaws
NEW Convenient drill chuck holds pre-soldered electrodes
NEW Additional thermal protective overload switch for transformer

  • Ergonomic Controls
  • 3 Heat Settings
  • 9 Pulse Time Settings
  • 12 Welding Tip Combinations
  • Remote weld/solder leads with tips
  • Brass posts for annealing and stress relieving

Complete package includes: Ortho Welder  II Unit, Foot Switch, Solder, Flux, Non-Asbestos heat sink, Brass Tip and Carbon Point, Copper Tips, Brass Posts, Dual-Purpose Cords (soldering + remote welding) and Two Copper Electrodes

Ortho Welder Product Specifications

  • Welding Current: up to 200 Amps
  • Weight: 25 lbs
  • Dimensions: 10"x10.5"x7"
  • Voltage: 110vAC/60hz or 220vAC/50hz
  • Draws(fused): 7 amps(110v) or 4 amps(220v)

Choose your product package from the dropdown above:
42750 Ortho Welder II (110v)
42752 Ortho Welder II (220v)

View Full Collection of Ortho Welder & Accessories
